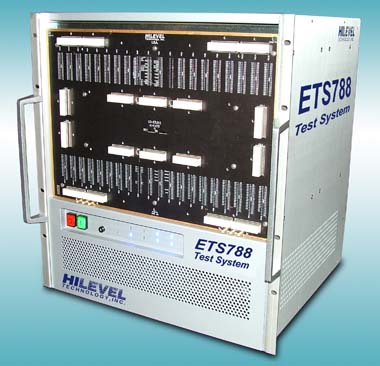

The 55/110 MHz ETS788 system boasts the same small footprint and cool quiet CMOS architecture as our ETS780 but with the new high-performance precision components of our Griffin series. This powerful member of the HiLevel family takes advantage of all of the tried and true features that have served users so successfully to date. Learn why the ETS788 is the perfect cost-effective solution for higher performance in Design Verification, Production and Failure Analysis.

Test rates up to 55MHz
Clocks to 110MHz
High Pin Count: Up to 512 pins in ONE Chassis
5 mV logic resolution
32 Programmable timing generators, 50ps edge placement resolution
Continous edge placement - no dead zones!
Low Cost
Per-pin programmability - all pins bidirectional
Mixed Signal Option
4M test vector depth, 64M capture depth
Programmable loads and parallel loads
Multiple DC PMU units - PMU per 32 pins
Test Automation without C programming or debug
APG Memory Test
Timing On-the-Fly
Oscilloscope function
Curve Tracing
